Product Description:
Pneumatic valve positioner: The reference variable for this positioner is the standard pneumatic signal ranging from 0.2 to 1 bar. It is an ideal option for accurately controlling different pneumatic regulating valves.
Electric/gas valve positioner: This positioner is designed for industrial applications that require high precision control. It accepts input control signals ranging from 4 to 20 mA.
Electric valve positioner: This positioner is integrated into the electric actuator and comes equipped with a built-in control algorithm to provide stable performance. It is perfect for long-term and stable operation.
Features:
The air capacity of this product is high and it offers simple attachment to common linear and rotary actuators. It can be directly attached to SAMSON, NAMUR rib, rod-type yokes according to IEC 60534-6-1, rotary actuator attachment according to VDI/VDE 3845, and attachment according to VDI/VDE 3847.
Position sensing is non-contact while the device offers plain-text display with NAMUR Recommendation NE 107 states and messages. It also has integrated diagnostic functions and can be operated easily with a one-knob, menu-driven operation. The LCD screen can be easily read in any mounting position thanks to the selectable reading direction.
It can be configured with a computer over the SSP interface using the TROVIS-VIEW software. It also has variable automatic start-up with four different initialization modes. In case of emergency, it offers sub (substitution) initialization mode for the positioner to be started up without having to change the valve position.
All parameters are saved in non-volatile EEPROM while it operates on a two-wire system with a small electrical load of 465 Ω. It also offers adjustable tight-closing function and continuous zero monitoring.
Technical Parameters:
| Product Attribute |
Value |
| Brand Name |
SAMSON |
| Valve Positioner |
Yes |
| Control Positioner Actuator |
Yes |
| Valve Position Regulator |
Yes |
| Opening Angle |
24 to 100° |
| Approximate Weight |
3.5 Kg (8.0 Pounds) |
| Static Destruction Limit |
40 V, Internal Current Limit Approx. 40 mA |
| Direction of Action |
Reversible |
| Travel Range |
Adjustable Within The Initialized Travel/angle Of Rotation Of The Valve; Travel Can Be Restricted To 1/5 At The Maximum |
| Operating Temperature |
Standard Temperature, High Temperature |
| CONTROL LOOP |
4 to 20 MA |
| Sensitivity |
≤0.1 % |
| Valve Travel |
3.6 to 300 mm |
Applications:
SAMSON is a renowned German company that has been producing high quality valve positioners for over 90 years. Their valve positioner series includes pneumatic valve positioners, electric/gas valve positioners, and electric valve positioners. These positioners are widely used in various industries such as petrochemical, electric power, light industry, metallurgy, medicine, beer and beverage, and city heating.
SAMSON is known for its commitment to producing high quality products that meet the evolving needs of their customers. Their valve positioners are built to the highest technical and safety standards, ensuring optimal efficiency and accuracy in controlling valve positions.
SAMSON's entrepreneurial spirit and innovative approach have made them pioneers in the valve positioner industry. Their dedication to research and development has led to the creation of innovative products that are trusted by industry professionals worldwide.
Support and Services:
Our Control Valve Positioner product is designed to ensure precise control of valve positioning in a variety of industrial applications. We offer comprehensive technical support and services for this product, including:
- Installation assistance
- Calibration and testing services
- Repairs and maintenance
- Technical troubleshooting and problem-solving
- Training and education for optimal product use
Our experienced technicians and engineers are available to provide expert assistance and guidance at every stage of your Control Valve Positioner product's lifecycle. We are committed to ensuring the reliable and efficient operation of your equipment, and will work with you to minimize downtime and maximize productivity.
Packing and Shipping:
Product Packaging:
The Control Valve Positioner product will be packaged in a sturdy cardboard box with foam inserts to ensure safe transportation. The box will be labeled with the product name, specifications, and handling instructions.
Shipping:
The product will be shipped via a reputable carrier to ensure timely and secure delivery. Shipping options include standard, expedited, or overnight delivery. The customer will be provided with a tracking number to monitor the shipment's progress.
Product Tags:
|
|

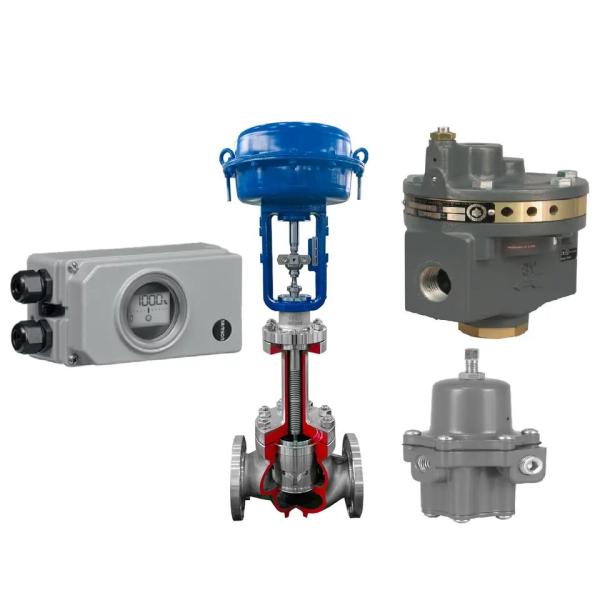

Samson3730-31/FisherDVC6200/MasoneilanSVI2-21113111/Flowserve/Neles Valve Positioner Images
|
